XQ570 Tier 4 Final

Height - Without Trailer
102 in / 2591 mm
Length - Without Trailer
240 in / 6096 mm
Width - Without Trailer
96 in / 2438 mm

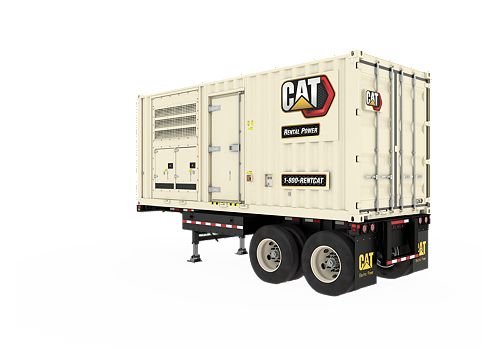

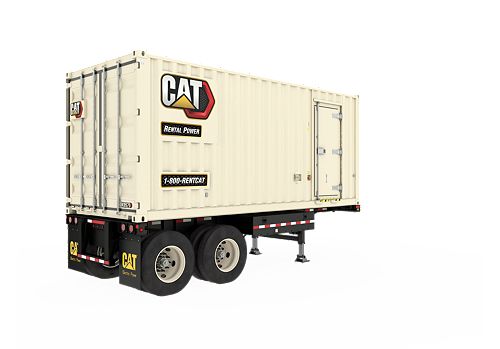

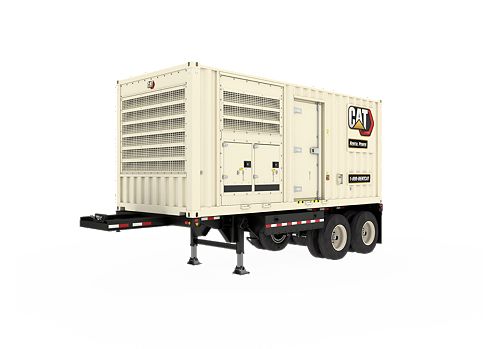

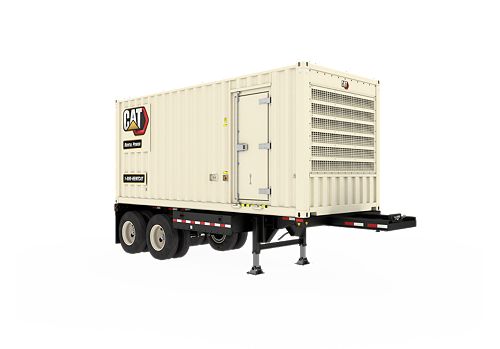

The Cat® XQ570 Rental Power Generator Setprovides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C18 Tier 4 Final compliantengine equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ570 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Generator Set
Rating Prime 455 ekW (568 kVA)
Frequency 60 Hz
Voltage 120 - 600V
Rating Standby 500 ekW (625 kVA)
Engine
Engine Cat C18
Fuel Diesel
Dimensions
Height - Without Trailer 102 in / 2591 mm
Length - Without Trailer 240 in / 6096 mm
Width - Without Trailer 96 in / 2438 mm
Weight with Lube Oil and Coolant, Without Trailer 24125 lb / 11396 kg
Fuel Consumption
100% Load 60Hz 33.2 gal/hr / 126 l/hr
75% Load 60Hz 26.2 gal/hr / 99 l/hr
50% Load 60Hz 19 gal/hr / 72 l/hr
100% Load 60Hz 35.9 gal/hr / 136 l/hr
75% Load 60Hz 28.3 gal/hr / 107 l/hr
50% Load 60Hz 20.5 gal/hr / 78 l/hr
Noise rating (with enclosure)
Sound Power @ 7 meters (23 feet) @ All Ratings 74 dB(A)

Standard Equipment

  • CAT C18 Diesel Engine
    • Heavy-duty.
      Turbocharged.
      After treatment.
  • Generator
    • LC6134G frame.
  • Control Panel
    • Digital EMCP4.4 set mounted controller.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge.
      Filled from factory.
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • 24hr dual wall fuel tank with 3 way directional valve for external supply.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank.
      Lifting frame and 4 point lift.
      Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
