3516C Industrial Power Unit
- Maximum Power
- 2100 hp / 1566 kW
- Minimum Power
- 2100 hp / 1566 kW
- Bore
- 6.7 in / 170 mm

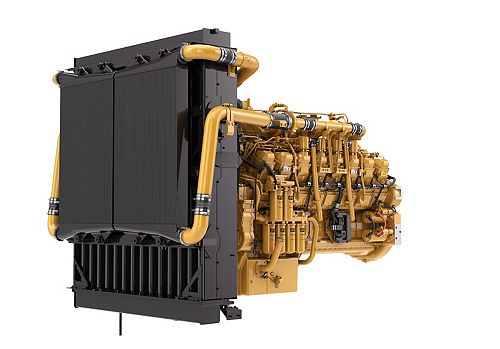

The Cat® 3516C Industrial Power Unit is offered at 1566 bkW (2100 bhp) @ 1750 rpm and is U.S. EPA Tier 2 Nonroad Equivalent. Conveniently pre-configured for a wide range of applications, the 3516C Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.
| Power Rating | |
|---|---|
| Maximum Power | 2100 hp / 1566 kW |
| Rated Speed | 1750 rpm |
| Minimum Power | 2100 hp / 1566 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 2 Nonroad equivalent emission standards (not currently EPA certified) |
| General | |
|---|---|
| Engine Configuration | V-16, 4-Stroke-Cycle Diesel |
| Bore | 6.7 in / 170 mm |
| Stroke | 8.5 in / 215 mm |
| Displacement | 4760 in³ / 78 l |
| Compression Ratio | 13.0:1 |
| Aspiration | Turbocharged Aftercooled |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 129 in / 3278 mm |
| Width | 60 in / 1530 mm |
| Height | 81 in / 2062 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 17284 lb / 7840 kg |
