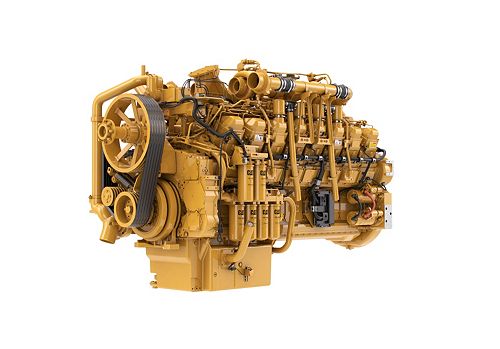

3516C
- Maximum Power
- 2100 hp / 1506 kW
- Maximum Torque
- 7563 lb-ft @ 1300 rpm / 10254 Nm @ 1300 rpm
- Minimum Power
- 2100 hp / 1506 kW
The Cat?? 3516C is offered at 1506 bkW (2100 bhp) @ 1750 rpm. This engine is available using EPA (U.S.) Flex provisions and for other global regulated and non-regulated areas. The 3516C offers unsurpassed performance and durability in a multitiude of industries and applications, including Bore and Drill Rigs, Chippers, Grinders, and Shredders, Cranes, Dredgers, Forestry, Material Handling, Mining and Pumps.
| Power Rating | |
|---|---|
| Maximum Power | 2100 hp / 1506 kW |
| Maximum Torque | 7563 lb-ft @ 1300 rpm / 10254 Nm @ 1300 rpm |
| Rated Speed | 1750 rpm |
| Minimum Power | 2100 hp / 1506 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 2 Nonroad Equivalent Emission Standards (Not Currently EPA Certified) |
| General | |
|---|---|
| Engine Configuration | V-16, 4-Stroke-Cycle Diesel |
| Bore | 6.7 in / 170 mm |
| Stroke | 8.5 in / 215 mm |
| Displacement | 4760 in³ / 78 l |
| Compression Ratio | 14.7:1 |
| Aspiration | Turbocharged Aftercooled |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 129.1 in / 3278 mm |
| Width | 60.2 in / 1530 mm |
| Height | 81.2 in / 2062 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 17284 lb / 7840 kg |
