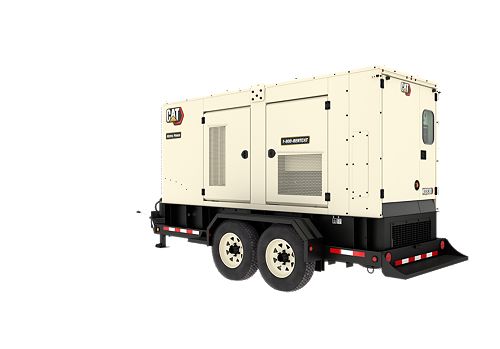

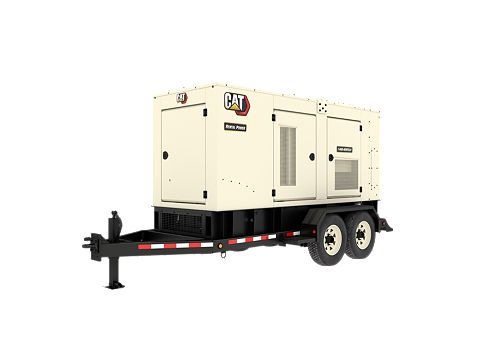

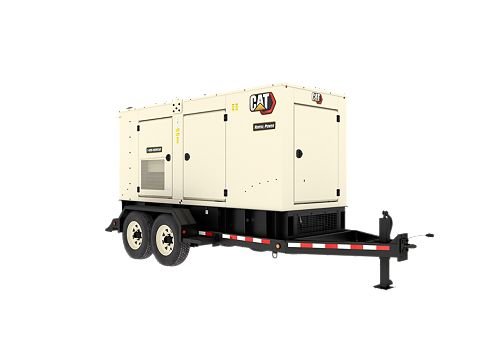

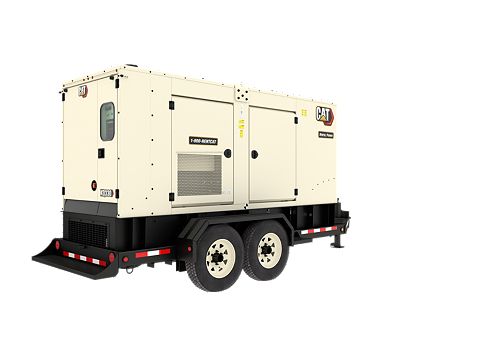

XQ330 Tier 4 Final

Height - Without Trailer
78.5 in / 1994 mm
Length - Without Trailer
162.2 in / 4120 mm
Width - Without Trailer
92.8 in / 1595 mm

The Cat® XQ330 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C9.3 Tier 4 Final compliant engine equipped with the Cat NOx Reduction System. Equipped with the EMCP 4.4 control panel, the XQ330 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Loan Calculator Credit Application
Build & Quote
alt 1
XQ330 Tier 4 Final Rental Generator Set Spec sheet Cat Gensets Rating Guide
Generator Set
Rating Prime 264 eKW (330 kVA)
Frequency 50/60 Hz
Voltage 120 - 600 V
Rating Standby 288 ekW (360 kVA)
Engine
Engine C9.3B
Fuel Diesel
Dimensions
Height - Without Trailer 78.5 in / 1994 mm
Length - Without Trailer 162.2 in / 4120 mm
Width - Without Trailer 92.8 in / 1595 mm
Weight with Lube Oil and Coolant, Without Trailer 10405 lb / 4720 kg
Fuel Consumption
100% Load 60 Hz 18.5 gal/hr / 70 l/hr
75% Load 60 Hz 13.7 gal/hr / 52 l/hr
50% Load 60Hz 9.8 gal/hr / 37 l/hr
100% Load 50 Hz 16.5 gal/hr / 62.5 l/hr
75% Load 50 Hz 12.5 gal/hr / 47.3 l/hr
Noise rating (with enclosure)
Sound Power @ 7 meters (23 feet) @ Prime Rating 70.2 dB(A) (60Hz)

Standard Equipment

  • CAT C9.3B Diesel Engine
    • Heavy-duty.
      Turbocharged.
      After treatment
  • Generator
    • LC5134N Frame
  • Control Panel
    • Digital EMCP4.4 set mounted controller
  • Cat Connect remote monitoring
    • Provides package monitoring and management
  • Cooling System
    • Package mounted radiator with vertical air discharge.
      Filled from factory
  • Charging / Starting System
    • Single 24V electric starting motor
  • Fuel System
    • 24 hour dual wall fuel tank
  • Air Filter
    • Efficient air cleaner with service indicator
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 3 pole 1000A maim circuit breaker and safety cut off
  • Structure
    • Heavy Duty steel base frame with integral fuel tank.
      Dual Point Lifting frame and 4 point lift.
      base frame is wider than enclosure to protect generator set during transportation
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Exhaust
    • Integrated spark arresting silencer
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory 500-hour oil change interval
  • General
    • Factory tested and inspected
